Bull Dog Cleat AISI316 Stainless Steel

Made of mirror-polished AISI316 stainless steel, stud mounting.

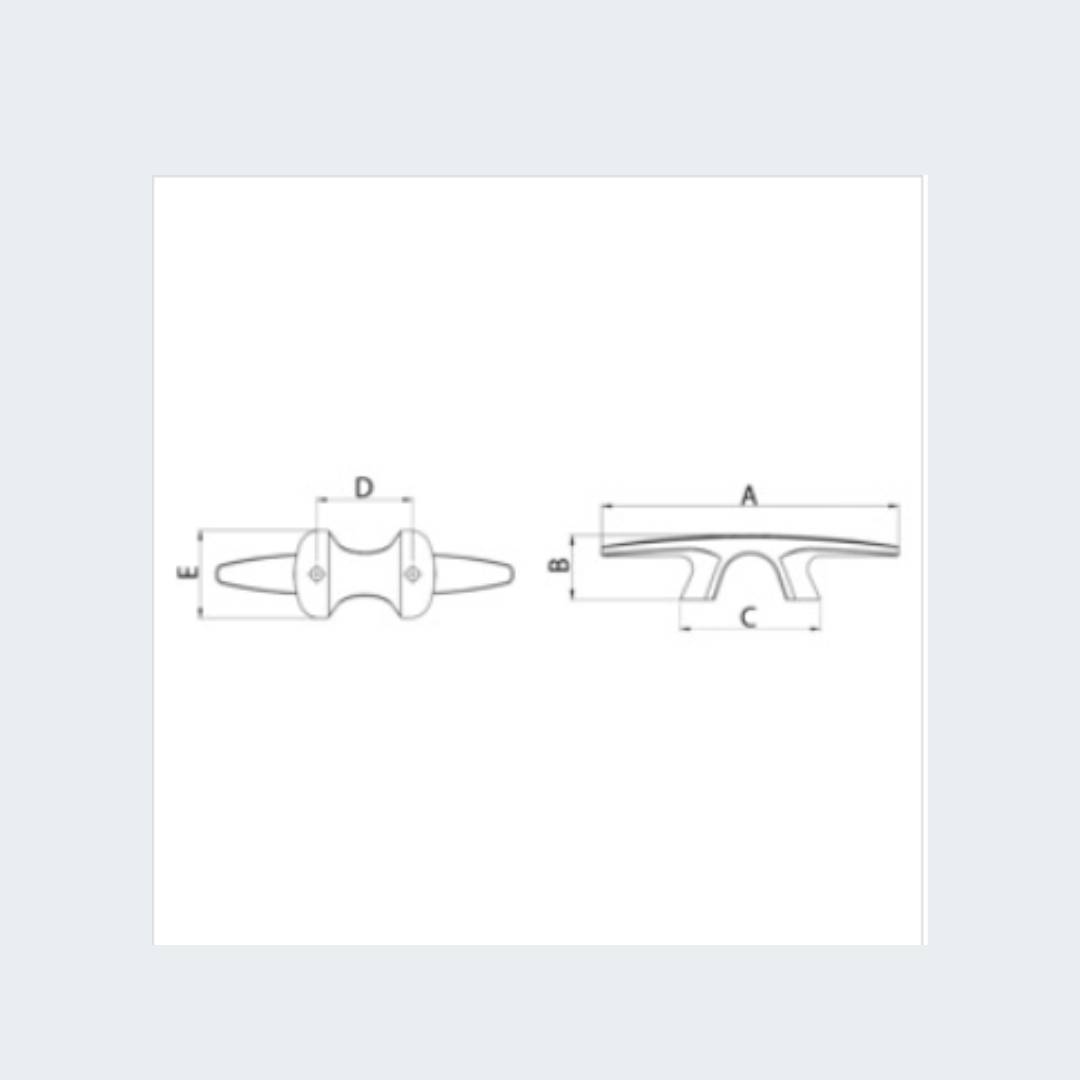

Item	A mm	B mm	C mm	D mm	E mm	Stud Ø mm	Breaking load kg	Recommended studs	White plastic base OPTIONAL
40.131.16	158	35	74	53	49	8	4497	40.142.09	40.131.40
40.131.20	205	44	94	64	62	10	6106	40.142.11	40.131.41
40.131.25	255	54	118	80	76	10	7051	40.142.11	40.131.42
40.131.30	305	65	127	90	82	14	–	40.142.14	–

Product Code : Choose from table
