Selecta New MKIII Battery Switch

Can use batteries alternatively or simultaneously; fitted with copper contacts, stainless steel springs, PC/PTB/Fiberglass flame resistant casing, protective cable base; extra ring-nut for flush mounting (Ø size 95 mm); type approved by ISO 8846 MARINE EN 28846.

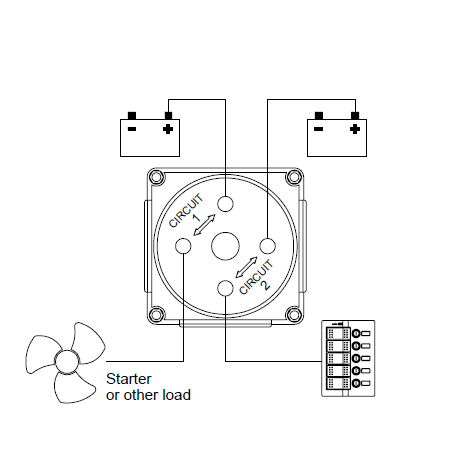

Version MK III. connects the engine start-up batteries and the service batteries simultaneously in position “1”, keeping the start-up batteries separately with motors, thus minimizing the risk of an accidental discharge if case of an emergency. The two circuits are connected among them under position “2”, type-approval no. DIP006907SP.
Model MK III Max capacity A – intermittent 450 Max capacity A – continuous 300 Functions 1 – Connect services and motors with separate circuits 2 – Parallel between services and motors
Pick up 1500° Base mm 104×104 Height mm 80 Pins mm 10



Product Code: 14.921.02
