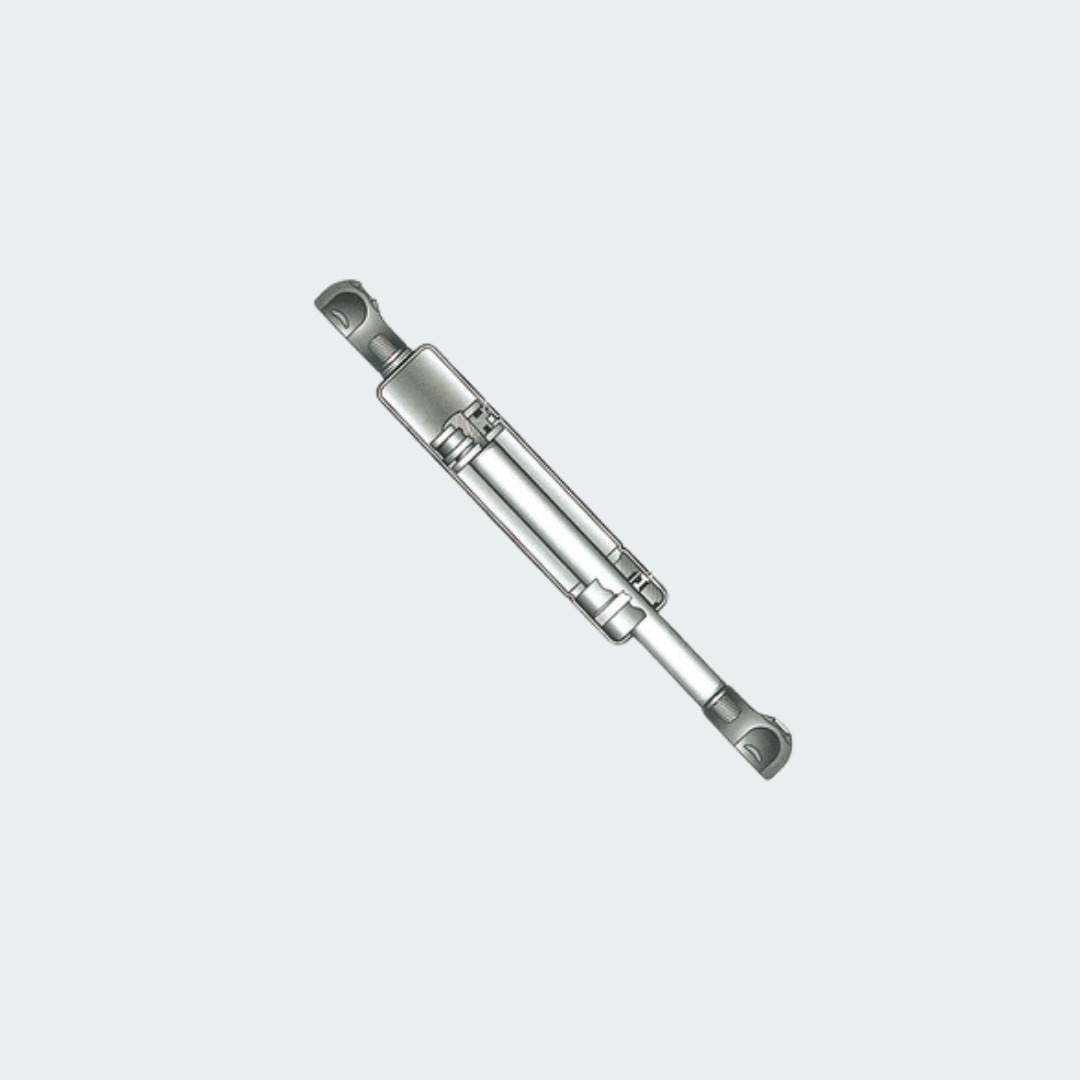

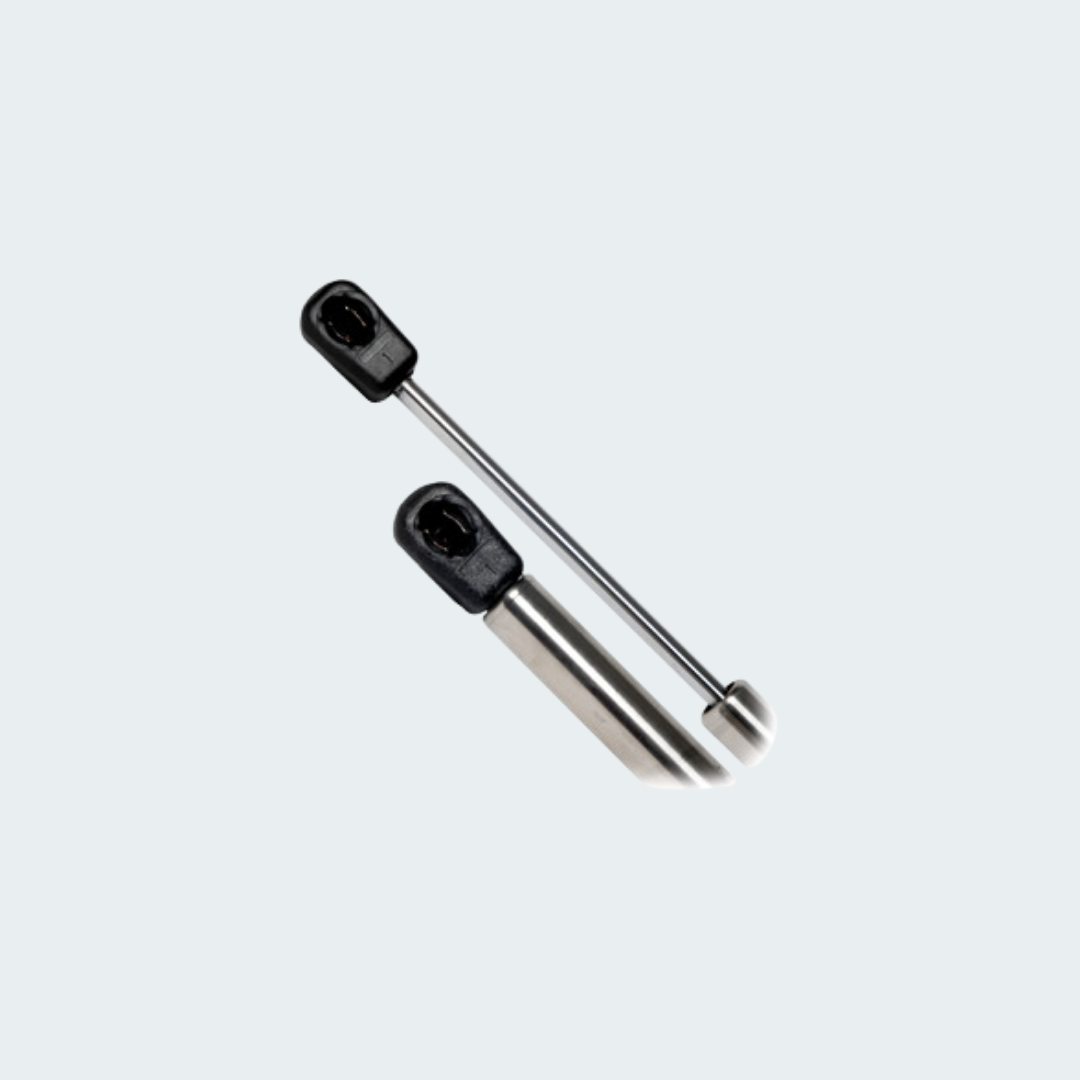

Stainless Steel Gas Spring With Ball Head

Stainless steel gas spring with ball head.

Composite ball terminals.

Product Code: 38.020.XX

Item Open mm Closed mm Stroke mm Reaction kg Ø body mm Ø stem mm Ø required sphere diameter mm
38.020.31
 254 178 76 9 15 6 10
38.020.32
 254 178 76 14 15 6 10
38.020.35
 305 216 89 20 15 6 10
38.020.40
 380 240 140 12 18 8 10
38.020.41
 380 241 140 18 18 8 10
38.020.42
 380 241 140 26 18 8 10
38.020.43
 380 241 140 38 18 8 10
38.020.45
 500 295 205 20 18 8 10
38.020.46
 500 295 205 29 18 8 10
 38.020.47 500 295 205 38 18 8 10
38.020.48
 600 345 255 20 18 8 10
38.020.49
 600 345 255 30 18 8 10
 38.020.50 600 345 255 40 18 8 10
38.020.51
 700 401 299 30 22 10 10
38.020.52
 700 401 299 45 22 10 10
38.020.55
 922 536 386 60 22 10 10
