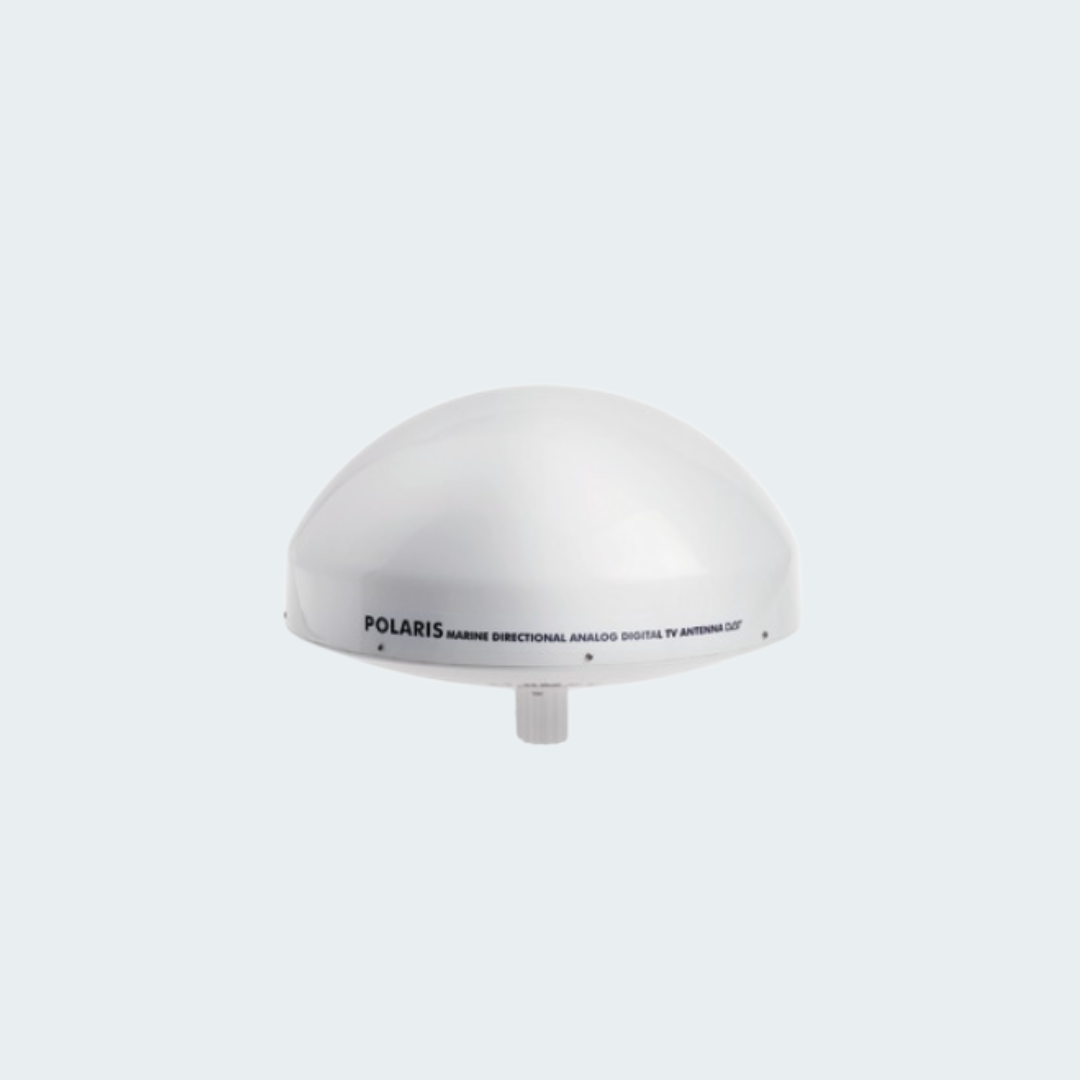

The perfect solution for watching terrestrial TV digital or analog on your boat. Reception directive angle at 60°, adjustable with a remote control(included), clear and continuous display (when there are signals), no reflex signals, gain up to 6 dB (fixed antennas have a gain of 0 dB). Electric motor swivelling part on the inner part of the dome, fitted on a location protected against wind and other potential risks.
Technical specifications
– Gain: 3dB VHF – 6dB UHF + 10dB (amplification) double amplifier internal/external
– Internal amplifier gain: 23 dB adjustable double inner/external amplifier
– Type of antenna: LOG-PERIODIC ANTENNA (UHF) DIPOLE ANTENNA LOADED (VHF) – Reception angle: 60° – Frequency: 170-230 MHz and 470-860MHz – Polarization: horizontal + UHF also vertical – Handling: with engine 12 V, speed 5°/sec., rotation: 0-359° – Remote control: infrared – diameter: 370 mm, height 260 mm – Weight: 1.5kg – Power 12V – Standby power consumption 150 mA max – Consumption with engine in operation: 300 mA max.
Installation cables (10 mt) and control unit with the antenna.
