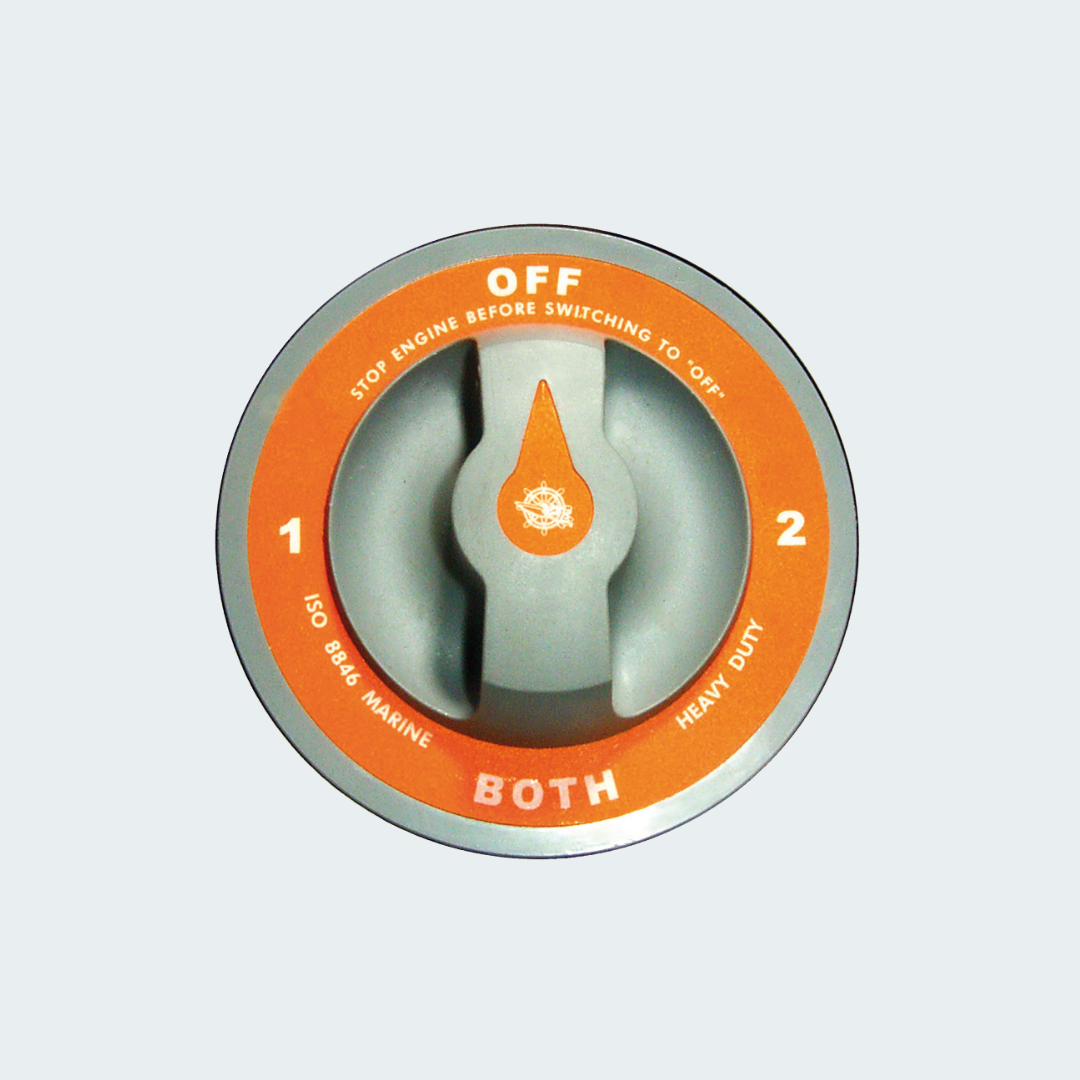

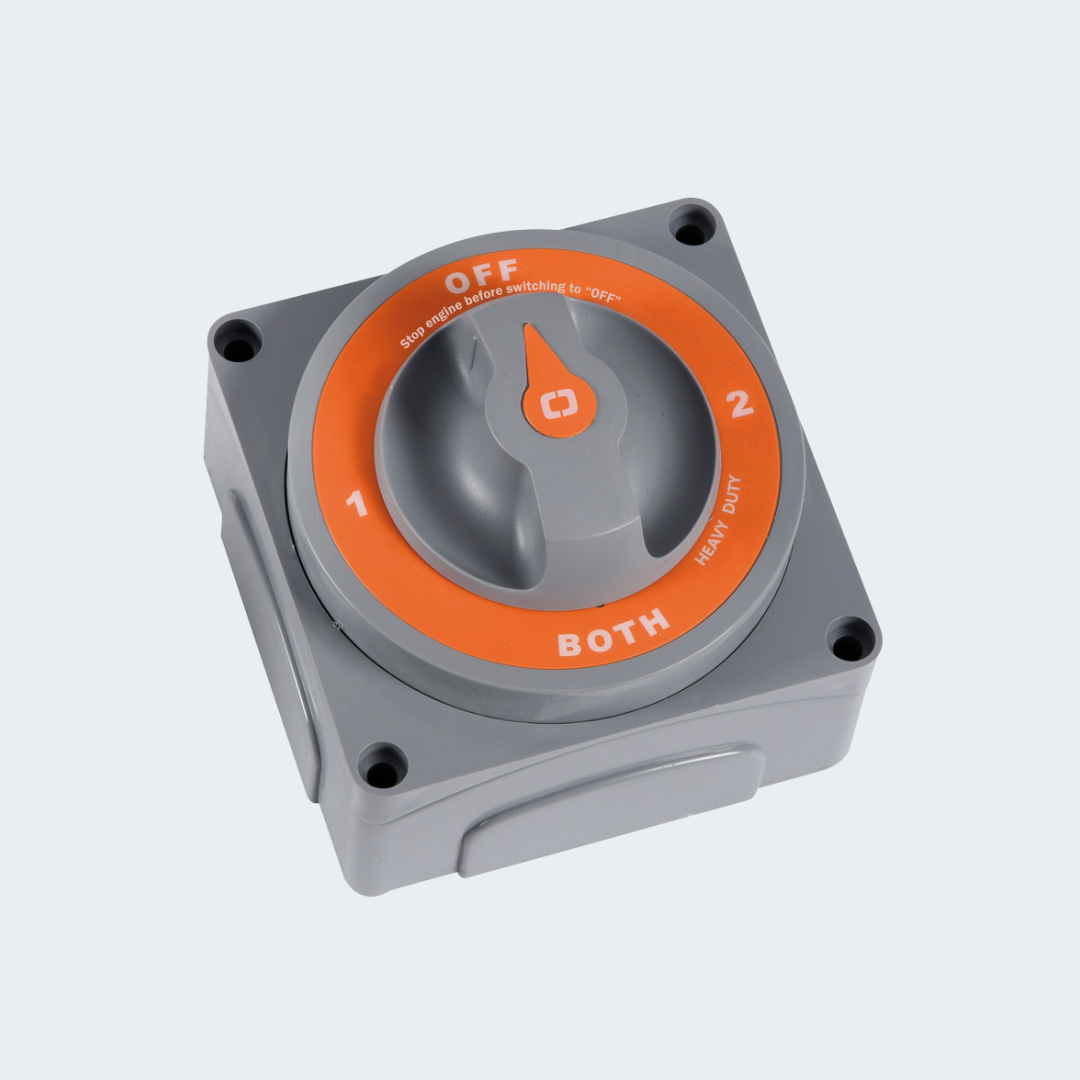

Selecta New MKII Battery Switch

Can use batteries alternatively or simultaneously; fitted with copper contacts, stainless steel springs, PC/PTB/Fiberglass flame resistant casing, protective cable base; extra ring-nut for flush mounting (Ø size 95 mm); type approved by ISO 8846 MARINE EN 28846.

“MK II” version. selectable options: bank/battery “1”, bank/battery “2” or 1+2 simultaneously. Includes device that disconnects the alternator power automatically if is under the “OFF” position without switching off the engines; type-approval no. DIP006907SP.

Model	MK II	Max capacity A – intermittent	450	Max capacity A – continuous	300	Functions	1 – Battery 1; 2 – battery 2; 3 – parallel
Pick up	1500°	Base mm	104×104	Height mm	80	Pins mm	10
