OSCULATI

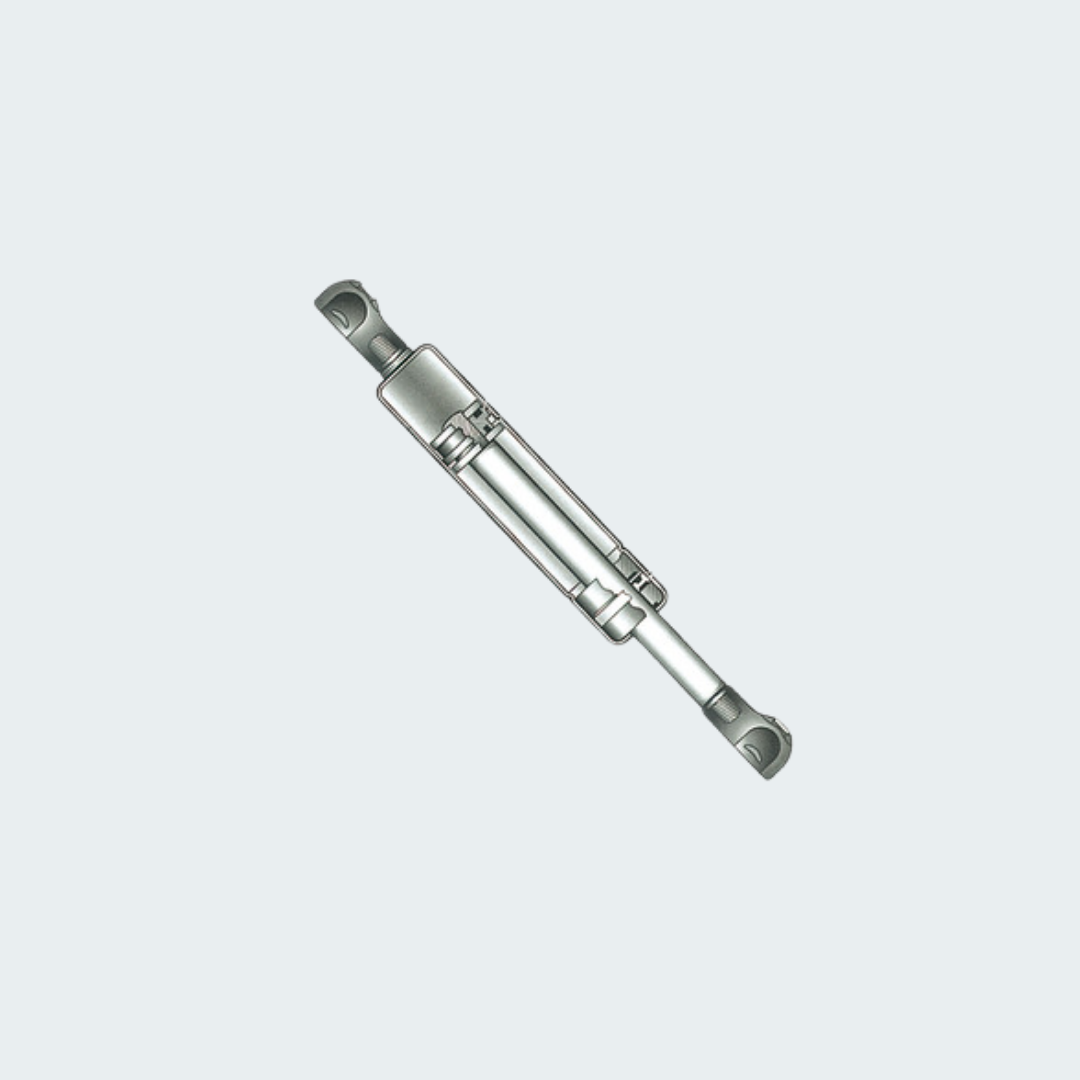

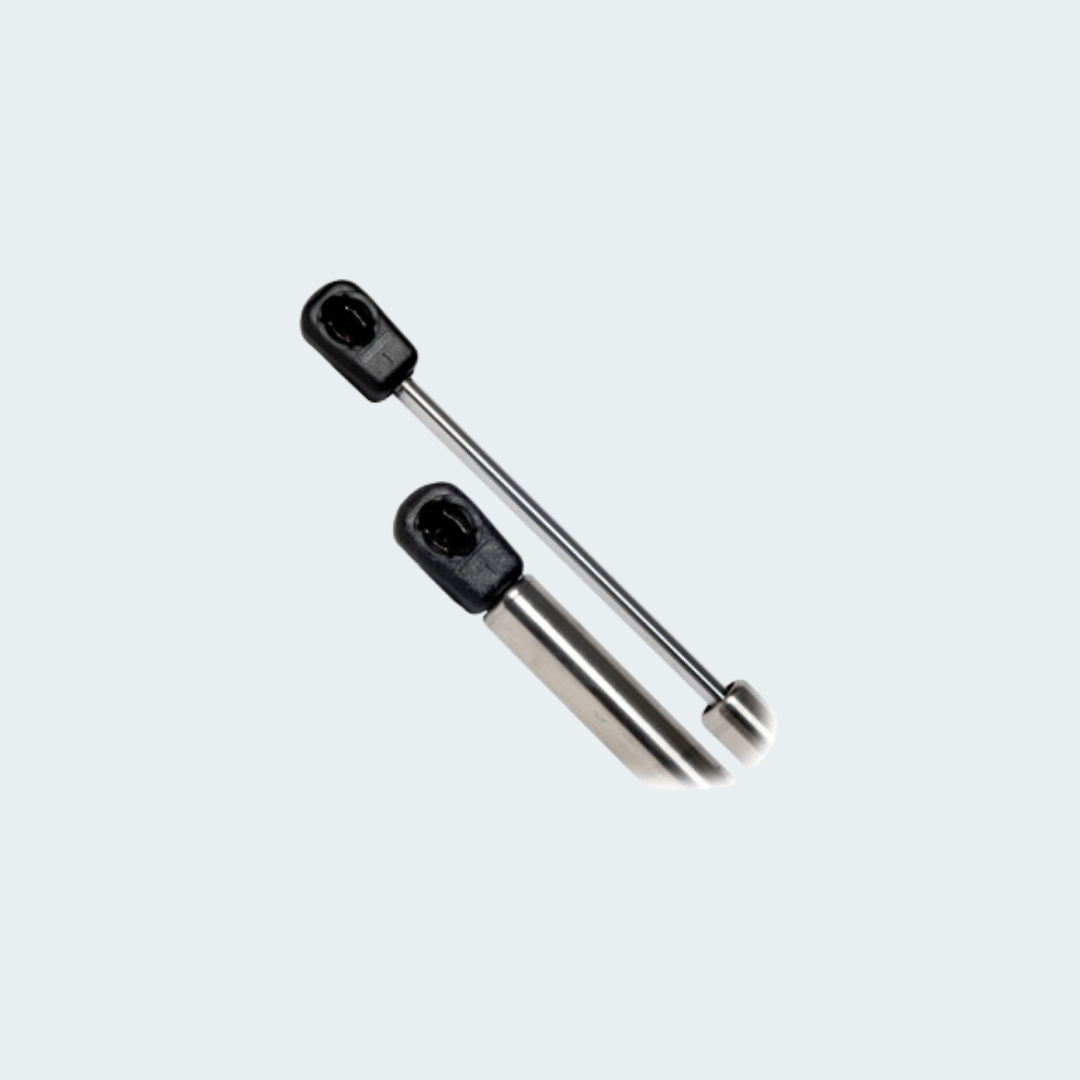

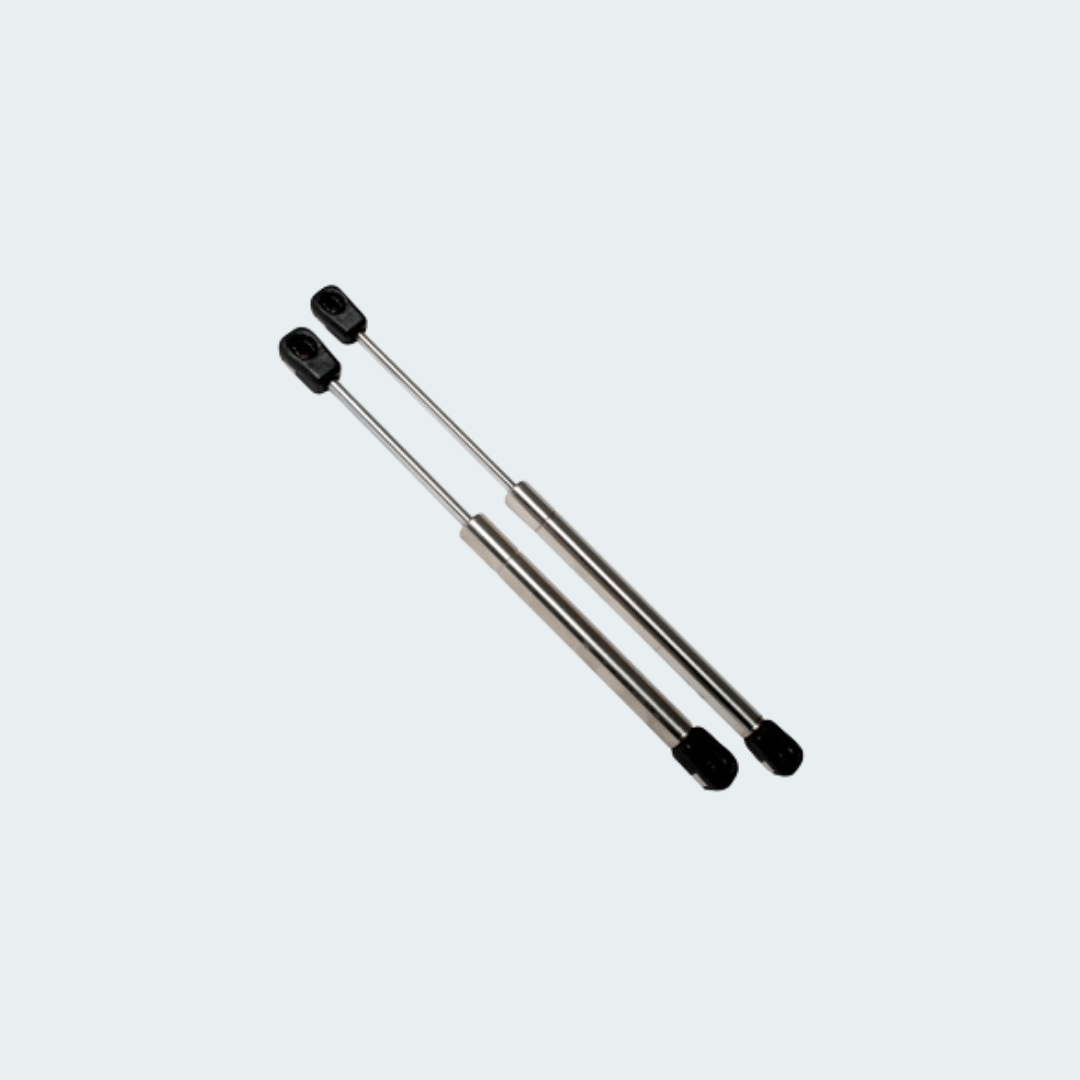

Stainless Steel Gas Spring With Ball Head

Stainless steel gas spring with ball head.

Composite ball terminals.

Product Code: 38.020.XX

Item	Open mm	Closed mm	Stroke mm	Reaction kg	Ø body mm	Ø stem mm	Ø required sphere diameter mm
38.020.31	254	178	76	9	15	6	10
38.020.32	254	178	76	14	15	6	10
38.020.35	305	216	89	20	15	6	10
38.020.40	380	240	140	12	18	8	10
38.020.41	380	241	140	18	18	8	10
38.020.42	380	241	140	26	18	8	10
38.020.43	380	241	140	38	18	8	10
38.020.45	500	295	205	20	18	8	10
38.020.46	500	295	205	29	18	8	10
38.020.47	500	295	205	38	18	8	10
38.020.48	600	345	255	20	18	8	10
38.020.49	600	345	255	30	18	8	10
38.020.50	600	345	255	40	18	8	10
38.020.51	700	401	299	30	22	10	10
38.020.52	700	401	299	45	22	10	10
38.020.55	922	536	386	60	22	10	10
