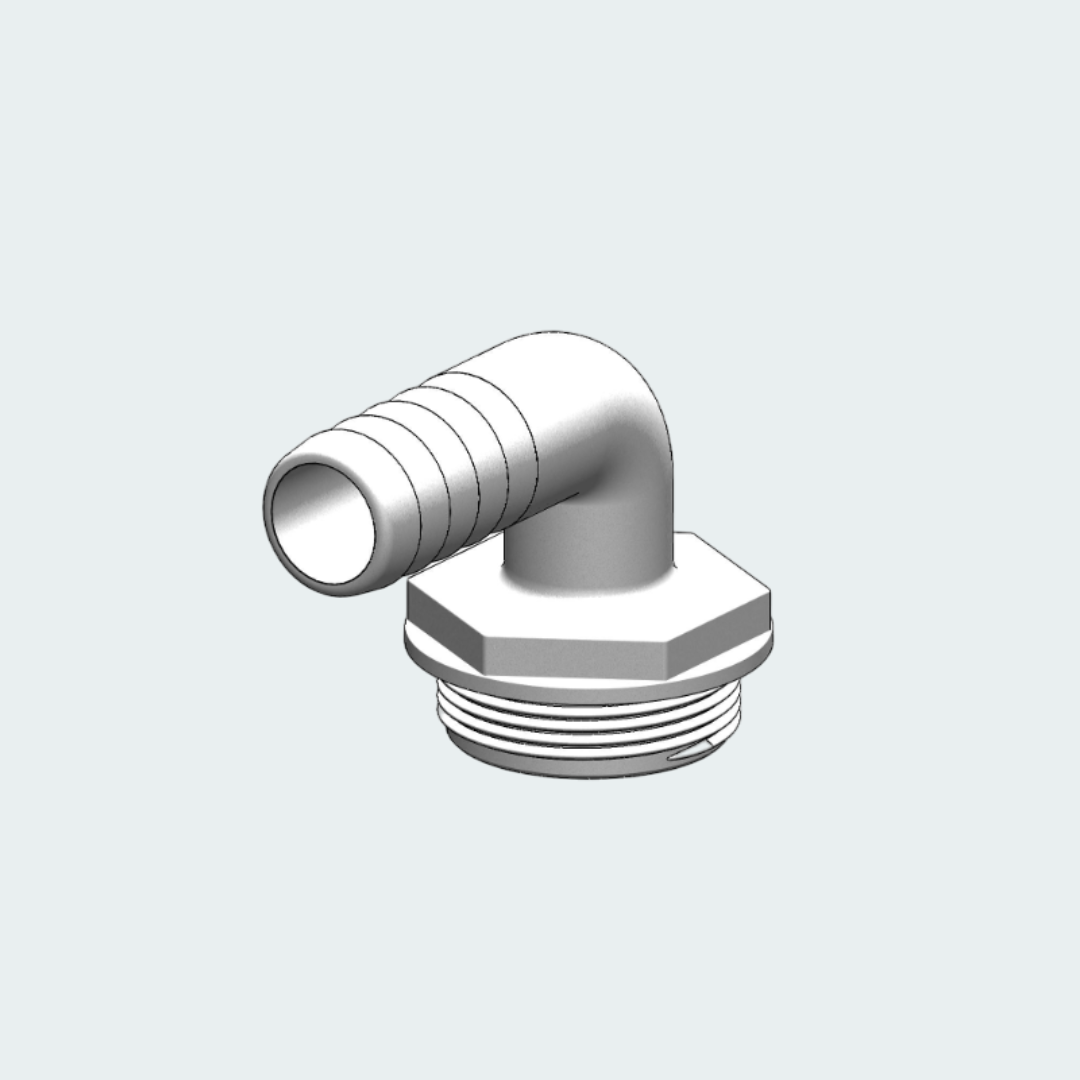

TruDesign Aquavalve 90° Tails 1½” BSP

The Tru-Design Aquavalve is the most versatile valve on the market today. A range of fittings is available to suit the variability of marine plumbing applications. These fittings can be used on the Aquavalve, Aquavalve through Bulkhead, Electronic Aquavalve or 3 Way Connector.
Aquavalve 90° Tail fittings are suited to the most common sizes of tubing used in marine plumbing. Tails come packaged together with a Blue Seal to allow the fitting to be rotated to a more suitable position, if required.

• The use of 2 hose clamps is recommended for secure hose fitting
• Tru-Design Aquavalve Accessories use a 1½” BSP parallel thread for securing the fitting. This is matched to the same thread on the Aquavalve body. The thread is not used for sealing. A thermoplastic rubber seal provides the sealing function
• The Aquavalve and accessories are suitable for use in the USA even though they are not NPS compatible. They form a self contained unit and are not required to interface with other components
• Do not use other fittings as they may interfere with Aquavalve operation or sealing. Not recommended for use with Ball Valves – please select from our Tail Long Thread 90° fittings.
